Create your own home design
Back to Home Designs
1Your floorplan
2Choose your facade
3Download your selections
1
Your floorplan
Selected
PLAN SIZES AVAILABLE IN THIS SERIES (sq):
24
29
Byron 24
Lot Width* 10m+
Aspire Range
4
1
2.5
2
Lower Level
Upper Level
Selected
PLAN SIZES AVAILABLE IN THIS SERIES (sq):
24
29
Byron 24
Lot Width* 10m+
Aspire Range
Total Area
224m2 (24.1sq)
Ground Floor Area
71.2m2
First Floor Area
100.9m2
Width
8.45m
Length
16.50m
4
1
2.5
2
2

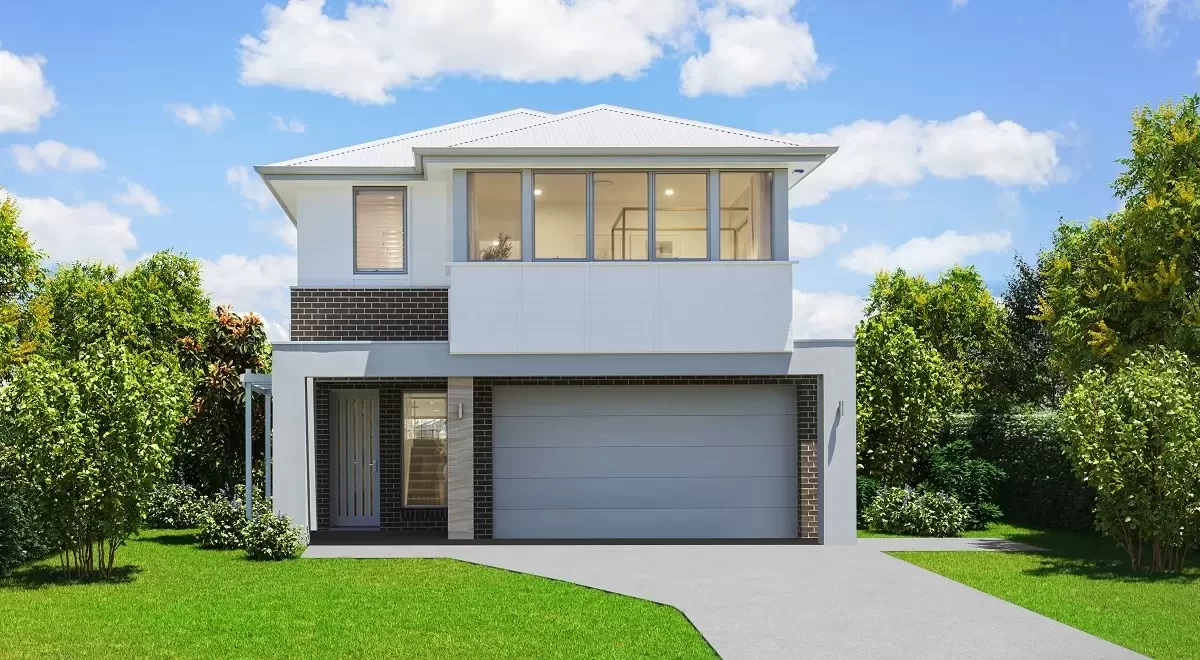

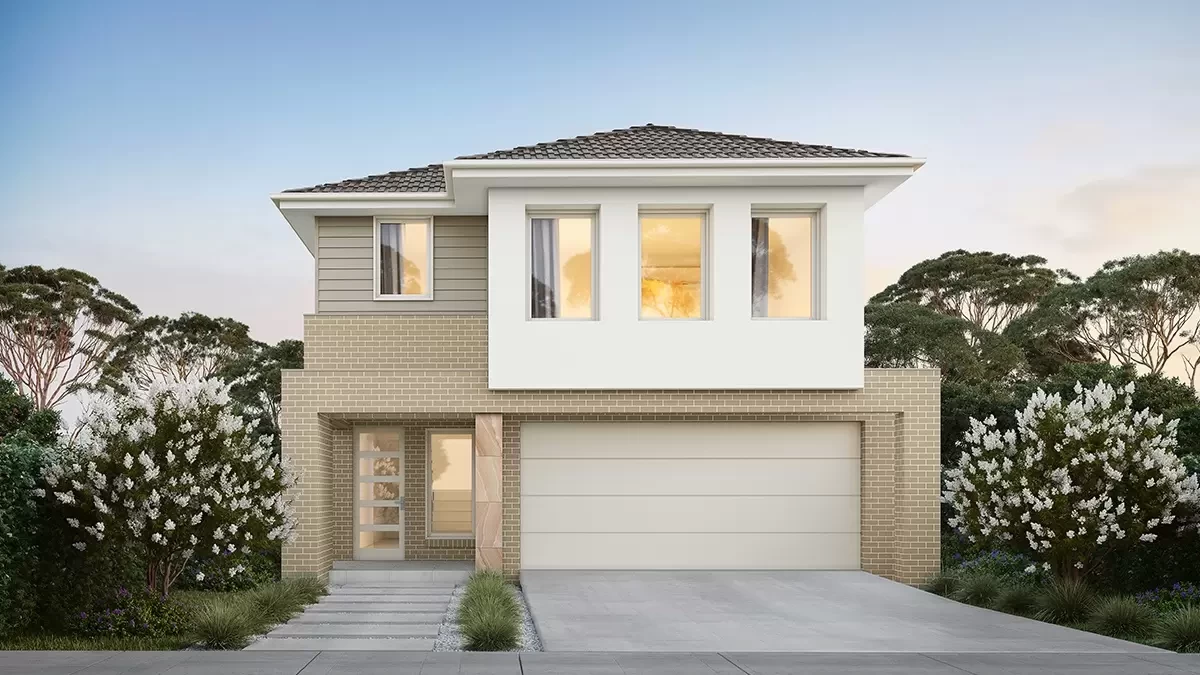

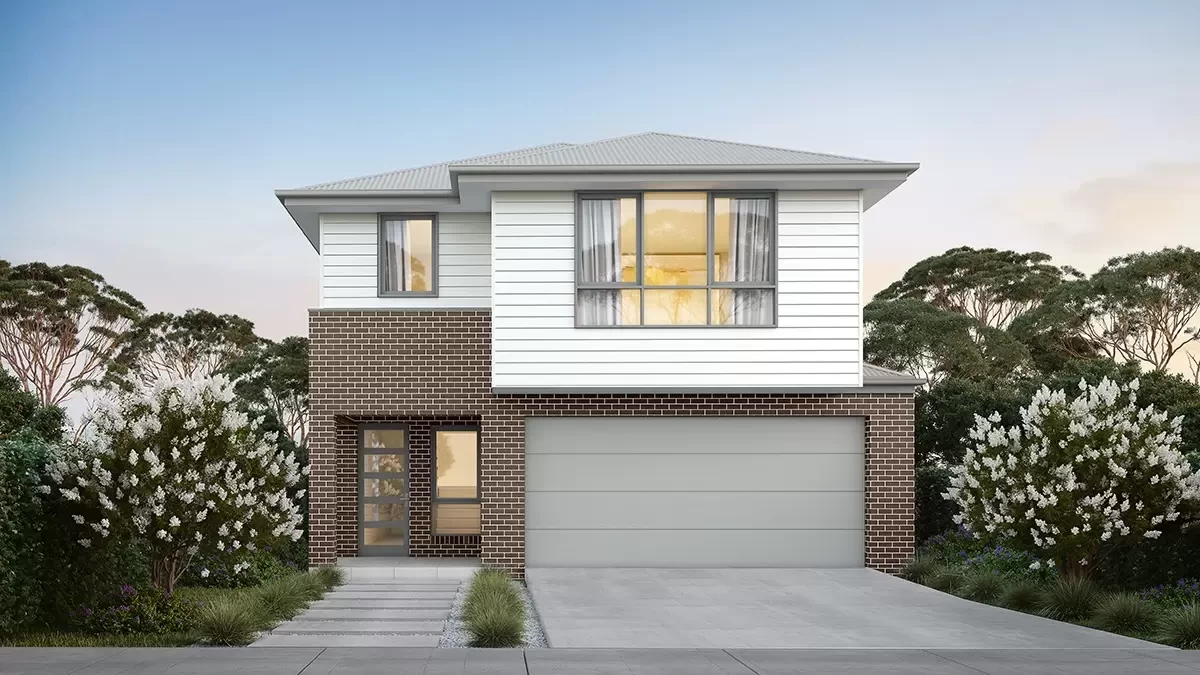

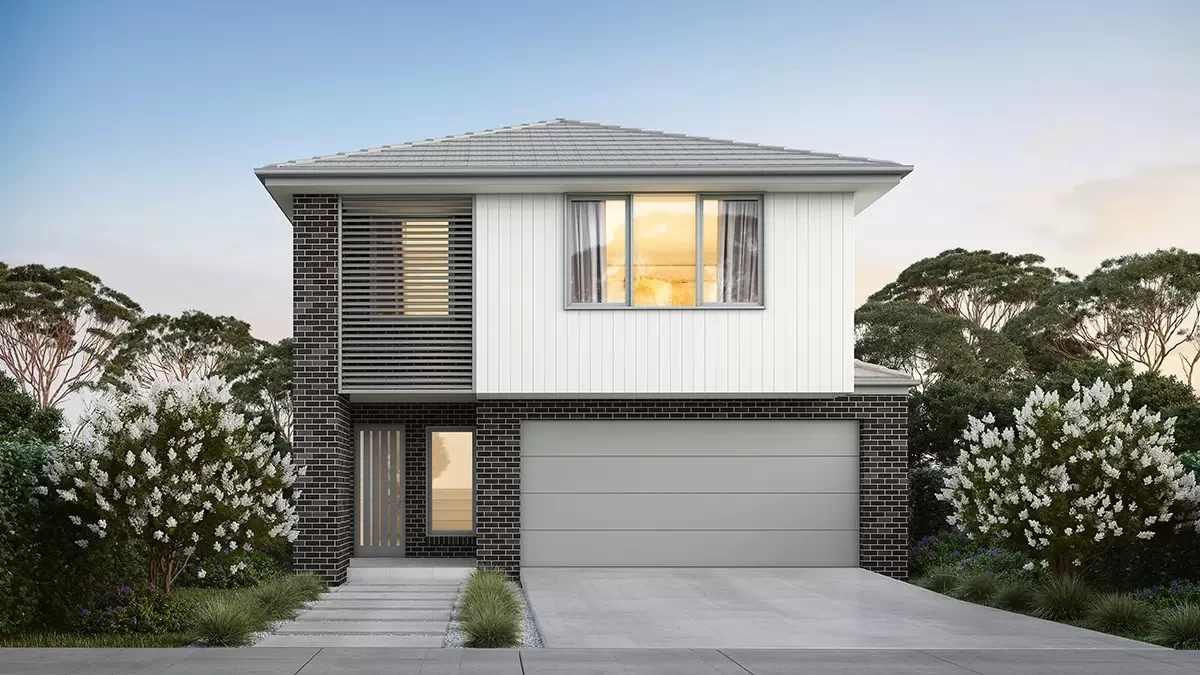

Choose your facade
Facade of 4
Classic
Select FacadeSelected
Kew
Select FacadeSelected
Metro
Select FacadeSelected
Soho
Select FacadeSelected
Include current promotion
3
Download your selections
Take The Next Step
Download and email your chosen floorplan and facade
Send your home design selections to your inbox to take into your nearest Clarendon Homes Display Centre. Our experienced new home consultants will help you with information on how to personalise your home to suit your needs. Receive more detailed pricing, and if you have a block of land, see exactly how your chosen home design will fit with our complimentary Geosite technology. We look forward to getting you started on the next stage of your building journey.
Your new home selections
Floorplan
Facade
Included Promotion
We'll need a few details...
Please provide us with the below information to download
Photo gallery

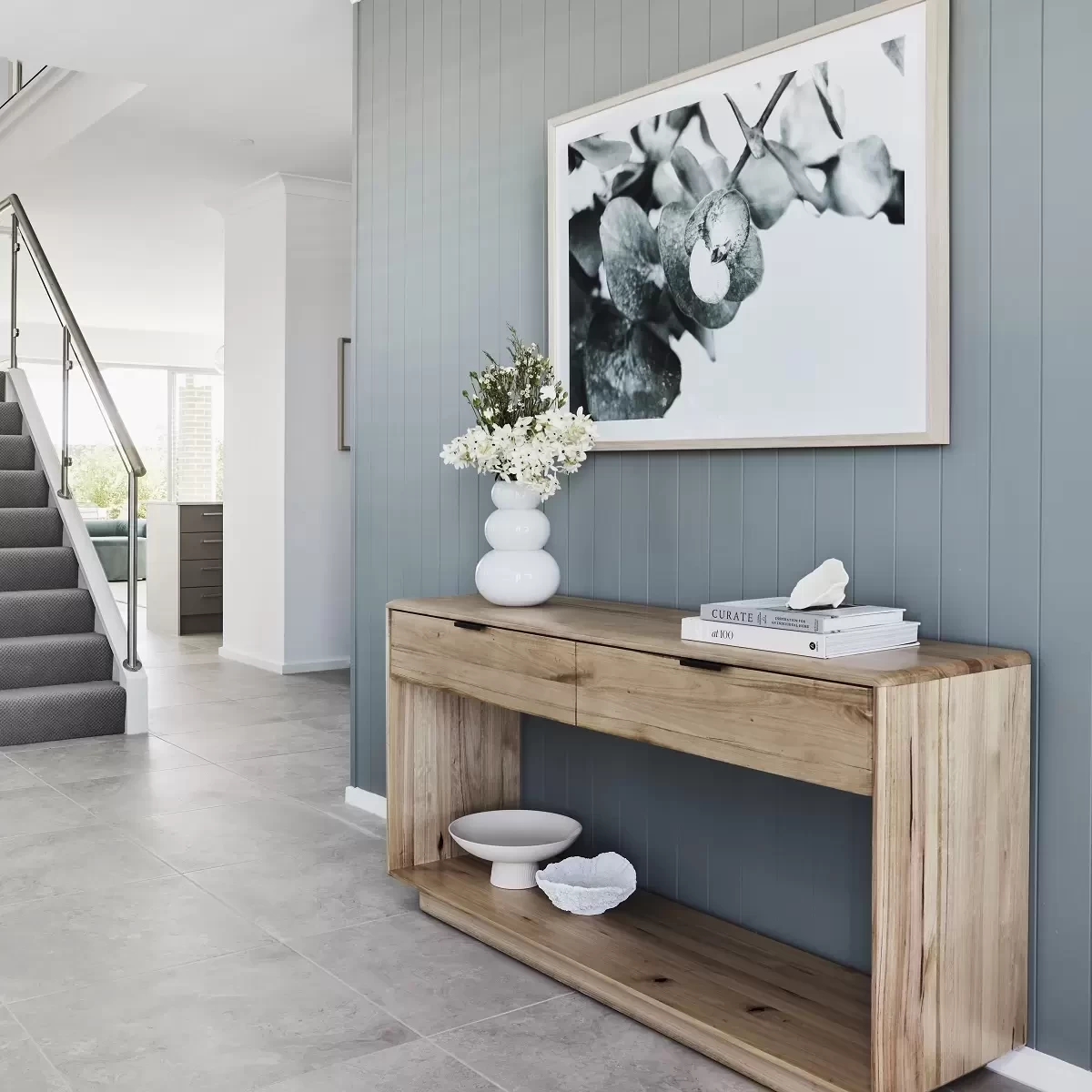

Entry
Kitchen

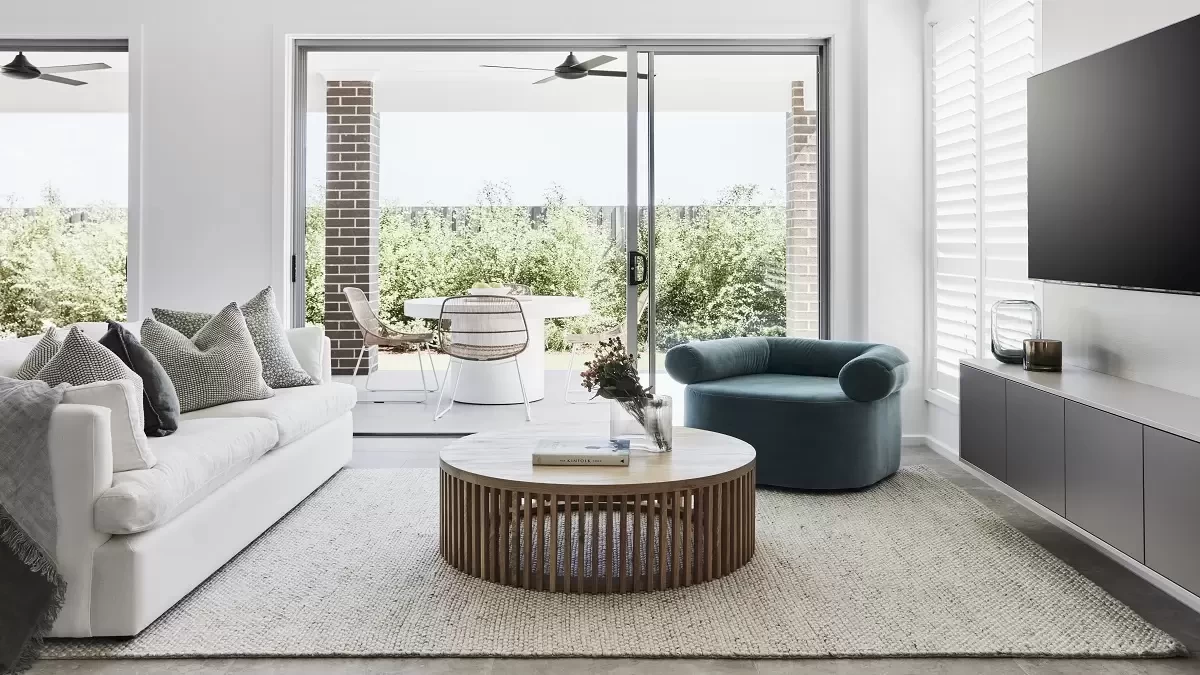

Living
Dining

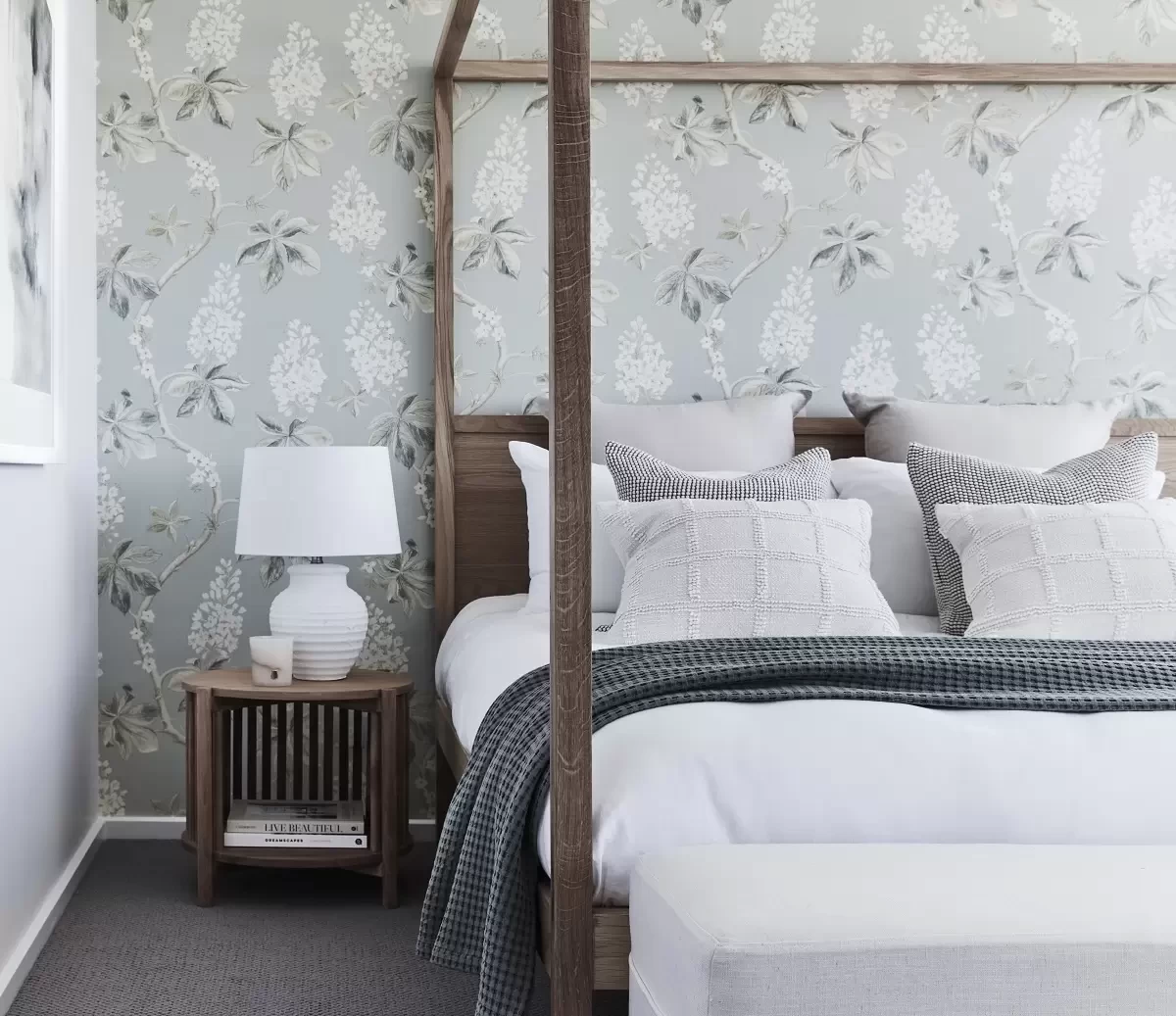

Master

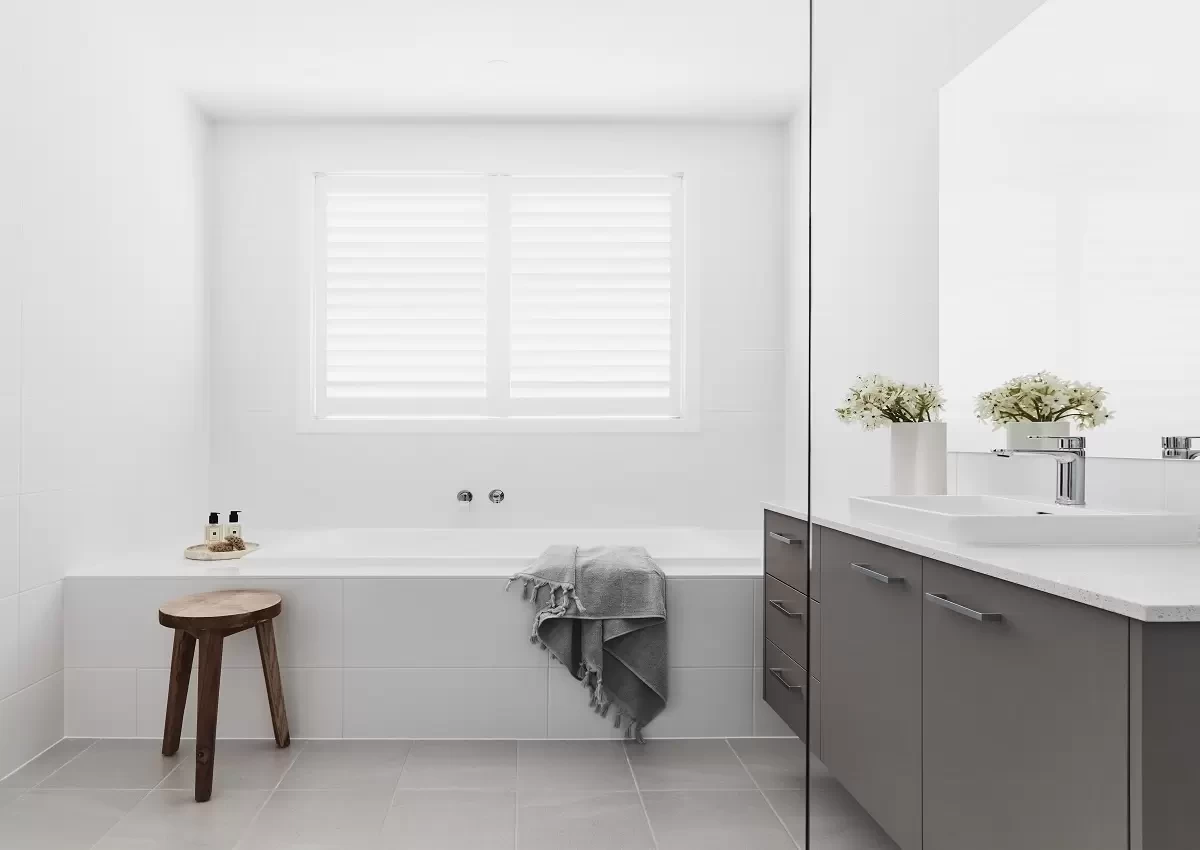

Bathroom
Rumpus

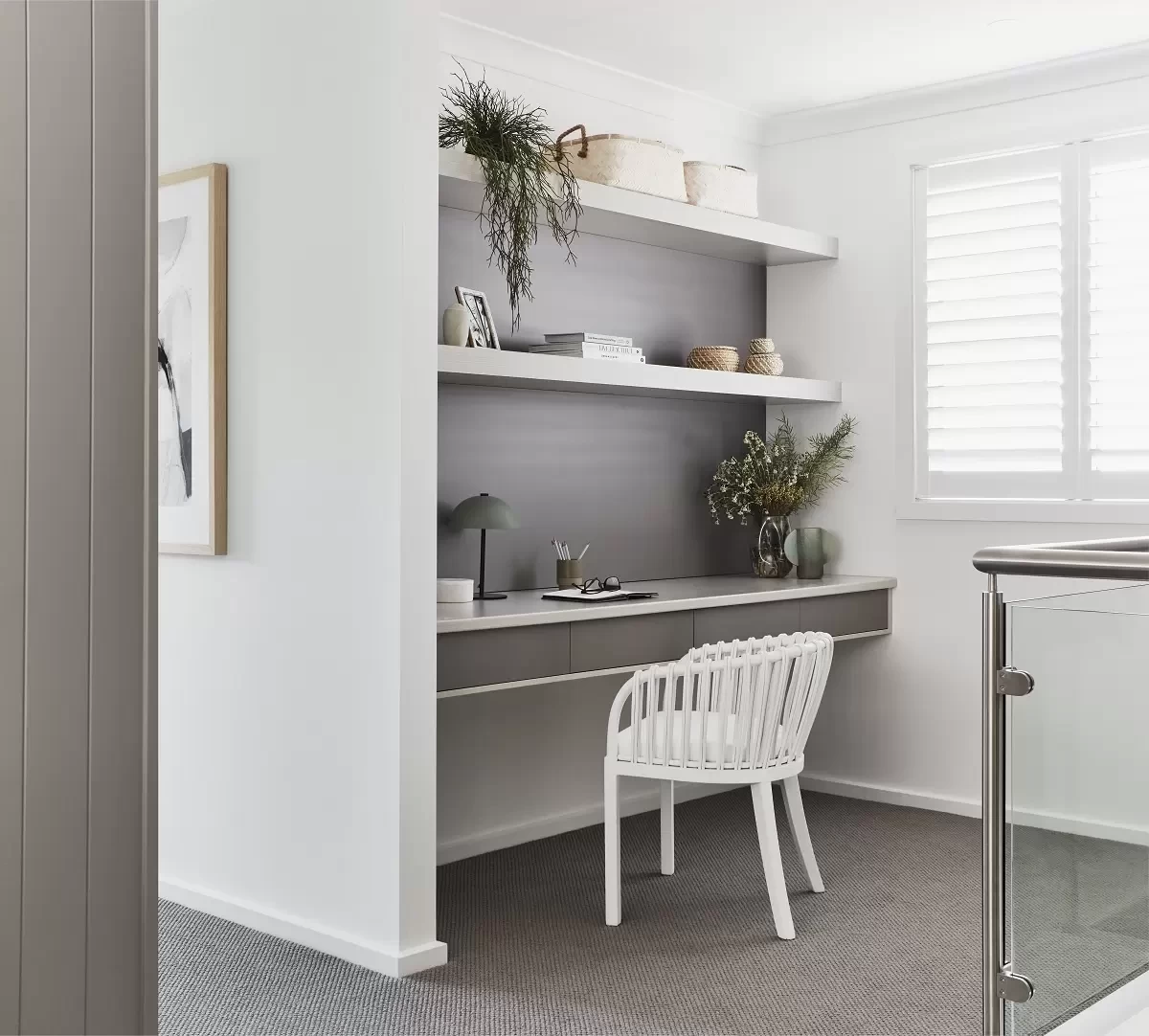

Study Nook
Virtual tours
Byron 29 at Cobbitty Display Homes
Aspire Inclusions
KITCHEN
Benchtops
Benchtops
33mm square edge laminate benchtop or island with shadowline from the nominated range
Cabinetry
Cabinetry
Laminate joinery with 1mm ABS edging in a choice of one colour from the nominated range. | Overhead Cupboards to Kitchen (Design Specific), Fully Lined, 1mm Edge Laminate Finish to Doors. Bulkheads above Overhead Cabinets with Shadowline between
Drawers
Drawers
One bank of four cutlery drawers
Handles
Handles
Door and drawer handles from the nominated range
Sink
Sink
Clark Monaco 1.75 bowl 1200w x 500h
Splashback
Splashback
Tiled Splashback and return/s, from Builders Nominated Range, between Benchtop and Overhead Cupboards on back wall and to Rear of Rangehood (Where Applicable).
Tap
Tap
Harmony Senza Sink Mixer
Rangehood
Rangehood
Chef 600mm canopy rangehood
Cooktop
Cooktop
Westinghouse 600mm gas cooktop or Westinghouse 600mm electric cooktop
Oven
Oven
Westinghouse 600mm electric oven.
Dishwasher
Dishwasher
Provision only for cold water and power connection.
Microwave
Microwave
Provision for power connection. Microwave space in kitchen island with pot drawer underneath - design specific.
Pantry
Pantry
Walk in pantry with four equally spaced white melamine shelves.
BATHROOM, ENSUITE & POWER ROOM
Vanity
Vanity
Laminate joinery with 1mm ABS edging in one colour from the nominated range
Benchtop
Benchtop
33mm square edge laminate benchtop in one colour from the nominated range
Basin
Basin
Choice of Caroma Carboni Seamless Basin with one tap hole or Caroma Orbis Inset Basin with one tap hole
Tapware
Tapware
Harmony Senza Basin Mixer, Bath/Shower Mixer, Harmony Senza 250mm Bath Spout
Handles
Handles
Door handles from the nominated range
Toilet Suite
Toilet Suite
Harmony Bassini Face of Wall Suite with soft close seat
Bath
Bath
Decina Metro Island Style Bath 1520mm / 1650mm With W/Overflow Hole (Size Determined by House Type)
Shower
Shower
Harmony Whitely Rail Shower and Softline Shower screen with pivot door
Shower Screen
Shower Screen
2000mm "Softline" Semi-Frameless Shower with Pivot Door, 6mm Safety Glass and Standard Handle
Bathroom Accessories
Bathroom Accessories
Harmony Meno 600mm Double Towel Rail, Toilet Roll Holder and Towel Ring (where applicable)
Mirror
Mirror
Frameless polished edge vanity mirrors. Mirror width same as vanity width - to sit above vanity splashback tile. Top of mirror to match shower tile height
Tiles
Tiles
Wall and floor tiles from nominated range up to 2100mm high in shower recess, up to 1m from floor high over bath and a single row or, 150mm nominal splashback tile to rear of vanity. Single row of skirting tile to remainder (design specific)
Floor Waste
Floor Waste
Linear Grated Waste in Chrome to all showers | Clearout Square waste in Chrome to all wet areas with a bath (located within 1.2m of the Bath waste)
Separate W.C
Separate W.C
Includes vanity basin where shown on the masterplan with finishes and tapware to match main bathroom
Waterproofing
Waterproofing
Sealed waterproof membrane in bathroom, ensuite/ powder room
INTERIORS
Internal Doors
Internal Doors
2040mm Corinthian Flush Panel internal doors for a smooth paint finish with Gainsborough Trade Pro or Choice Series lever set (choice of three colours) to all internal passage and robe doors, and privacy set to bathroom and powder room
Architraves & Skirting
Architraves & Skirting
Profiled 67mm x 18mm architrave and skirting suitable for paint finish from the standard range
Staircase
Staircase
Staircase with closed treads and risers (suitable for carpet finish only) with pine stringer and square mild steel balusters in black powder coated finish with timber post and handrail. All timber in painted finish. Does not include stained timber treads.
Ceiling and Cornice
Ceiling and Cornice
2450mm nominal ceiling height to ground floor and first floor with 90mm Cove cornice
Paint
Paint
Paint finish to all internal walls and woodwork
Sliding Door
Sliding Door
Sliding door with 396 Circular Sliding Cavity Set in three colours
LAUNDRY & STORAGE
Wall & Floor Tiles
Wall & Floor Tiles
Wall and floor tiles from the nominated range. Skirt tile to perimeter with a tiled splashback
Tap
Tap
Harmony Meno laundry sink mixer
Drop- In Tub
Drop- In Tub
Everhard Benchline 45L stainless steel tub with 900mm cupboard
Washing Machine Taps
Washing Machine Taps
Hot and cold Oschin wall taps
External/Laundry Door
External/Laundry Door
Aluminium sliding door
Linen Cupboard
Linen Cupboard
Linen cupboard with four melamine shelves
Wardrobes
Wardrobes
Linen cupboard with melamine shelf
Internal Laundry Door
Internal Laundry Door
Corinthian Flush Panel Internal Doors with bright chrome hinges and latches
EXTERIOR
Roof
Roof
Quality concrete roof tiles in a wide range of profiles and colours from the nominated range
Aluminium Windows
Aluminium Windows
Powder coated aluminium windows
Aluminium Sliding Doors
Aluminium Sliding Doors
Powder coated aluminium sliding doors
Garage Door
Garage Door
Sectional Overhead Garage door
Front Entry Door
Front Entry Door
Corinthian PURB4 Panel carve entry door (primed) with choice of Gainsborough Trade Pro Adel or Bela entrance lever lock sets or knob lock sets
Insulation
Insulation
R2.5 batts to ceiling under roof to all living areas (excludes garage and alfresco). R1.5 glass wool batts to external walls for living area including walls between garage and living areas
Hot Water System
Hot Water System
Rinnai 26L Continuous flow gas hot water system
Concrete Slab
Concrete Slab
CLASS “M” or “H1” Australian standard engineered slab
Facade
Facade
Single storey Traditional façade will be in brick while double storey is brick and cladding. Choose colours from the nominated range.
Alfresco Piers
Alfresco Piers
Brick Piers to Alfresco
